Each Garmin unit needs a compatible transducer to function properly.
Not sure which transducer you need for your Garmin fish finder or which adapter cable to buy?
No problem. We created a chart to help you find the right combination. Use the search box on top to find compatible models and required adapter cables (in brackets).
We regularly research all Garmin transducers to make this compatibility guide accurate and up-to-date.
Garmin Transducer Compatibility Chart
| Transducer Number, Type | Compatible Units (Required Cable) |
|---|---|
| GT8HW-TM 010-12401-00 CHIRP High Wide Transom | STRIKER CV Series (010-12719-00) STRIKER SV Series (010-12719-00) ECHOMAP UHD CV Series (010-12719-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| GT8HW-IH 010-12401-10 CHIRP High Wide In-Hull | STRIKER CV Series (010-12719-00) STRIKER SV Series (010-12719-00) ECHOMAP UHD CV Series (010-12719-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| GT15M-TM 010-12402-10 CHIRP Mid Band Transom | STRIKER CV Series (010-11947-00) STRIKER SV Series (010-11947-00) ECHOMAP UHD CV Series (010-11947-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| GT15M-IH 010-12402-00 CHIRP Mid Band In-Hull | STRIKER CV Series (010-11947-00) STRIKER SV Series (010-11947-00) ECHOMAP UHD CV Series (010-11947-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Dual Beam-IF 010-13069-00 Ice Fishing Dual Beam | STRIKER CV Series STRIKER SV Series (010-12719-00) ECHOMAP UHD CV Series (010-12719-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) |
| GT8HW-IF 010-12401-20 Ice Fishing Wide Beam | STRIKER CV Series STRIKER SV Series ECHOMAP UHD CV Series (010-12719-00) ECHOMAP UHD SV Series (010-12718-00) ECHOMAP Ultra (010-12718-00) |
| GT10HN-IF 010-12677-00 Ice Fishing Narrow Beam | STRIKER CV Series STRIKER SV Series (010-11947-00) ECHOMAP UHD CV Series (010-11947-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) |
| GT20-TM 010-01960-00 CHIRP ClearVü, Traditional Transom | STRIKER CV Series STRIKER SV Series ECHOMAP UHD CV Series |
| GT21-TM 010-01962-00 CHIRP ClearVü, Traditional Transom | STRIKER CV Series (010-12719-00) STRIKER SV Series (010-12719-00) ECHOMAP UHD CV Series (010-12719-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| GT21-TH 010-01962-10 CHIRP ClearVü, Traditional Thru-Hull | STRIKER CV Series (010-12719-00) STRIKER SV Series (010-12719-00) ECHOMAP UHD CV Series (010-12719-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| GT22HW-TM 010-12403-00 CHIRP ClearVü, Traditional Transom | STRIKER CV Series (010-12719-00) STRIKER SV Series (010-12719-00) ECHOMAP UHD CV Series ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| GT23M-TM 010-12404-00 CHIRP ClearVü, Traditional Transom | STRIKER CV Series (010-12719-00) STRIKER SV Series (010-12719-00) ECHOMAP UHD CV Series ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| GT23M-TH 010-12404-10 CHIRP ClearVü, Traditional Thru-Hull | STRIKER CV Series (010-12719-00) STRIKER SV Series (010-12719-00) ECHOMAP UHD CV Series ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| GT30-TM 010-01961-00 CHIRP ClearVü, SideVü Transom | STRIKER SV Series (010-12234-05) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GCV 20 GSD 25 GPSMAP 1242XSV PLUS GPSMAP 7x3/9x3/12x2xSV |
| GT30-TH 010-01961-10 CHIRP ClearVü/SideVü Thru-Hull | STRIKER SV Series (010-12234-05) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GCV 20 GSD 25 GPSMAP 1242XSV PLUS GPSMAP 7x3/9x3/12x2xSV |
| GT30-THP 010-01961-11 CHIRP ClearVü/SideVü Thru-Hull | STRIKER SV Series (010-12234-05) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GCV 20 GSD 25 GPSMAP 1242XSV PLUS GPSMAP 7x3/9x3/12x2xSV |
| GT24UHDTM 010-12908-00 UHD ClearVü/SideVü Transom | ECHOMAP UHD CV Series ECHOMAP UHD SV Series ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| GT34UHDTM 010-12776-00 UHD ClearVü/SideVü Transom | ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GCV 20 GPSMAP 7x3/9x3/12x2xSV |
| GT36UHDTM 010-13072-00 UHD ClearVü/SideVü Transom | ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GCV 20 GPSMAP 7x3/9x3/12x2xSV |
| GT34UHDTH 010-12776-10 UHD ClearVü/SideVü Thru-Hull | ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GCV 20 GPSMAP 7x3/9x3/12x2xSV |
| GT34UHDTHP 010-12776-11 UHD ClearVü/SideVü Thru-Hull | ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GCV 20 GPSMAP 7x3/9x3/12x2xSV |
| GT54UHDTM 010-12909-00 UHD ClearVü/SideVü Transom | ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GPSMAP 7x3/9x3/12x2xSV |
| GT56UHDTM 010-13073-00 UHD ClearVü/SideVü Transom | ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GPSMAP 7x3/9x3/12x2xSV |
| GT40-TM 010-01963-00 Traditional SideVü/ClearVü Transom | STRIKER SV Series (010-12234-05) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS GPSMAP 7x3/9x3/12x2xSV |
| GT41-TM 010-01964-00 Traditional SideVü/ClearVü Transom | STRIKER SV Series (010-12234-05) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS GPSMAP 7x3/9x3/12x2xSV |
| GT50M-TM 010-01965-00 CHIRP Traditional ClearVü/SideVü Transom | STRIKER SV Series (010-12234-05) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS GPSMAP 7x3/9x3/12x2xSV |
| GT51M-TM 010-01966-00 CHIRP Traditional ClearVü/SideVü Transom | STRIKER SV Series (010-12234-05) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS GPSMAP 7x3/9x3/12x2xSV |
| GT51M-TH 010-01966-10 CHIRP Traditional ClearVü/SideVü Thru-Hull | STRIKER SV Series (010-12234-05) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS GPSMAP 7x3/9x3/12x2xSV |
| GT51M-THP 010-01966-11 CHIRP Traditional ClearVü/SideVü Thru-Hull | STRIKER SV Series (010-12234-05) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS GPSMAP 7x3/9x3/12x2xSV |
| GT52HWTM 010-12405-00 CHIRP Traditional ClearVü/SideVü Transom | STRIKER SV Series (010-12234-05) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS GPSMAP 7x3/9x3/12x2xSV |
| PS21-TM 010-01588-01 PANOPTIX Forward-looking Transom | ECHOMAP UHD CV Series (7cv only) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GPSMAP 1242XSV PLUS GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV |
| PS22 010-01945-00 PANOPTIX Forward-looking Trolling Motor | ECHOMAP UHD CV Series (7cv only) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GPSMAP 1242XSV PLUS GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV |
| PS31 010-01284-01 PANOPTIX Forward-looking Transom/Trolling Motor | ECHOMAP UHD CV Series (7cv only) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GPSMAP 1242XSV PLUS GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV |
| PS30 010-01284-00 PANOPTIX Down-looking Transom/Trolling Motor | ECHOMAP UHD CV Series (7cv only) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GPSMAP 1242XSV PLUS GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV |
| PS51-TH 010-01753-00 PANOPTIX Forward-looking Thru-Hull | ECHOMAP UHD CV Series (7cv only) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GPSMAP 1242XSV PLUS GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV |
| PS60 010-01406-00 PANOPTIX Down-looking Thru-Hull | ECHOMAP UHD CV Series (7cv only) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GPSMAP 1242XSV PLUS GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV |
| LVS12-TM 010-02143-00 PANOPTIX LiveScope Transom | ECHOMAP Ultra GPSMAP 8600XSV |
| LVS32-TH 010-12928-01 PANOPTIX LiveScope Thru-Hull | ECHOMAP UHD CV Series (7dv only) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GPSMAP 1242XSV PLUS GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV |
| LVS32 LiveScope System 010-01864-00 PANOPTIX LiveScope Thru-Hull | ECHOMAP UHD CV Series (7dv only) ECHOMAP UHD SV Series ECHOMAP Ultra GPSMAP 8600XSV GPSMAP 1242XSV PLUS GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV |
| Garmin Dual Beam 4-Pin 010-10249-20 Transom | STRIKER CV Series STRIKER SV Series ECHOMAP UHD CV Series (4cv, 5cv) |
| Garmin Dual Beam 8-Pin 010-10249-40 Transom | ECHOMAP UHD CV Series (7cv) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar P32 Triducer 010-10106-20 Transom | ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Garmin Dual Frequency 010-10272-10 Transom | STRIKER CV Series STRIKER SV Series ECHOMAP UHD CV Series 7cv (4cv, 5cv - 010-11947-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar P66 Triducer 010-10192-21 Transom | ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar TM150M 010-11928-20 Transom | ECHOMAP UHD CV Series - 7cv (4cv, 6cv - 010-12719-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar TM185M 010-12810-20 Transom | GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar TM265LH 010-12378-20 Transom | GSD 25 (Dual-channel CHIRP) GSD 26 |
| Airmar P19 Thru-Hull | ECHOMAP UHD CV Series - 7cv (4cv, 6cv - 010-12719-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B619 Thru-Hull | ECHOMAP UHD CV Series - 7cv (4cv, 6cv - 010-12719-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar P319 Thru-Hull | ECHOMAP UHD CV Series - 7cv (4cv, 6cv - 010-12719-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B60 Thru-Hull | ECHOMAP UHD CV Series - 7cv (4cv, 6cv - 010-12719-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar SS60 Thru-Hull | ECHOMAP UHD CV Series - 7cv (4cv, 6cv - 010-12719-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B164 Thru-Hull | GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B117 Traditional Thru-Hull | ECHOMAP UHD CV Series - 7cv (4cv, 6cv - 010-12719-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B744V Traditional Thru-Hull | ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B744VL Traditional Thru-Hull | ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B258 Traditional Thru-Hull | GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B260 Traditional Thru-Hull | GPSMAP 8600XSV GSD 24 GSD 25 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B150M CHIRP Traditional Thru-Hull | ECHOMAP UHD CV Series - 7cv (4cv, 5cv - 010-11947-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 25 GSD 26 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B75H CHIRP Traditional Thru-Hull | ECHOMAP UHD CV Series - 7cv (4cv, 5cv - 010-11947-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 25 GSD 26 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B75M CHIRP Traditional Thru-Hull | ECHOMAP UHD CV Series - 7cv (4cv, 5cv - 010-11947-00) ECHOMAP UHD SV Series (010-12122-10) ECHOMAP Ultra (010-12122-10) GPSMAP 8600XSV GSD 25 GSD 26 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B175HW CHIRP Traditional Thru-Hull | GPSMAP 8600XSV GSD 25 GSD 26 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B175H CHIRP Traditional Thru-Hull | GPSMAP 8600XSV GSD 25 GSD 26 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B175M CHIRP Traditional Thru-Hull | GPSMAP 8600XSV GSD 25 GSD 26 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B175L CHIRP Traditional Thru-Hull | GPSMAP 8600XSV GSD 25 GSD 26 GPSMAP 1242XSV PLUS (010-12122-10) GPSMAP XS PLUS Series GPSMAP 7x3/9x3/12x2xSV (010-12122-10) |
| Airmar B265LH CHIRP Traditional Thru-Hull | GPSMAP 8600XSV GSD 25 GSD 26 |
| Airmar B265LM CHIRP Traditional Thru-Hull | GPSMAP 8600XSV (Dual-channel only - 010-11613-10) GSD 25 (Dual-channel only - 010-11613-10) GSD 26 |
| Airmar B275LHW CHIRP Traditional Thru-Hull | GPSMAP 8600XSV GSD 25 GSD 26 |
| Airmar R109LM CHIRP Traditional Thru-Hull | GSD 26 |
| Airmar R109LHW CHIRP Traditional Thru-Hull | GSD 26 |
| Airmar R509LHW CHIRP Traditional Thru-Hull | GSD 26 |
| Airmar M265LH CHIRP In-Hull | GPSMAP 8600XSV (Dual-channel only) GSD 25 (Dual-channel only) GSD 26 |
| Airmar R111LH CHIRP In-Hull | GSD 26 |
| Airmar PM265LM CHIRP Pocket Mount | GSD 26 |
| Airmar CM599LHW CHIRP Pocket Mount | GSD 26 |
How to Identify a Garmin Transducer?
Check for a tag or label on the transducer or its cable. Follow the cable from the transducer to where it ends.
Look for the transducer name or Part Number (PN), for example 010-13073-00.
Required Adapter Cables
Depending on the transducer and fish finder combo, you may need to purchase an adapter cable. Part numbers are provided next to the corresponding Garmin unit in our chart.

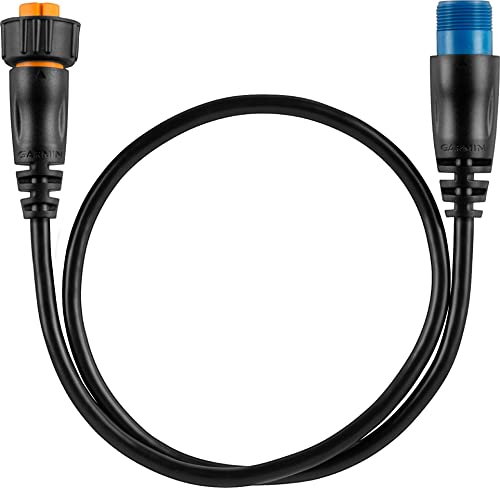

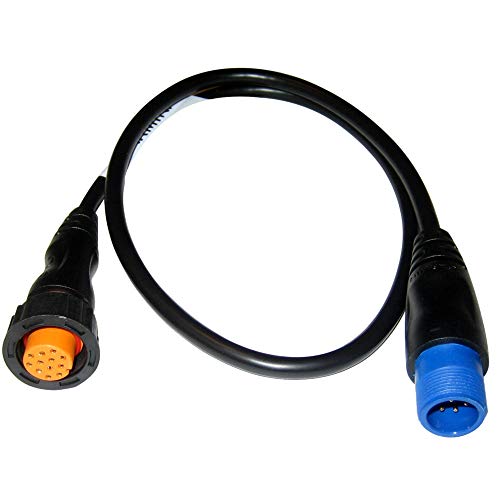

8-Pin Transducer to 12-Pin Sounder (010-12122-10)
This adapter cable connects an 8-pin transducer with XID to a 12-pin sonar port to a compatible Garmin unit.

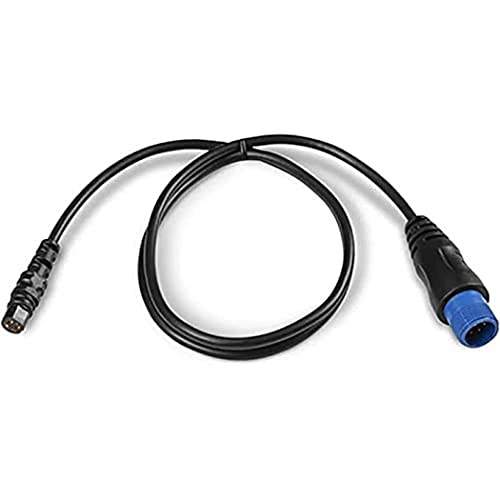

8-Pin Transducer to 4-Pin Sounder (010-12719-00)
With this adapter cable, you can connect your Garmin 8-pin single or dual beam transducer to a compatible Garmin 4-pin ECHO or STRIKER series fishfinder.

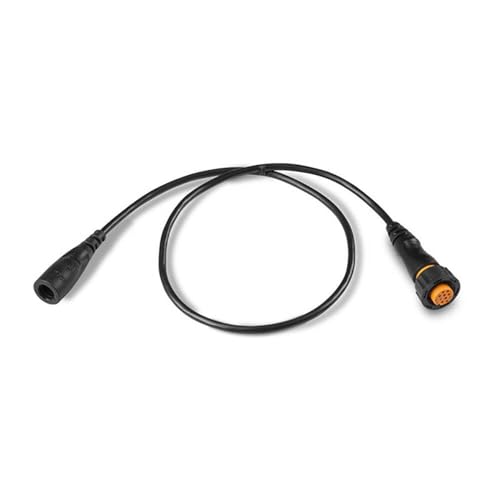

4-Pin Transducer to 12-Pin Sounder (010-12718-00)
With this cable, you can connect a 4-pin dual-beam transducer with your 12-pin ECHOMAP CHIRP, ECHOMAP Plus or ECHOMAP Ultra Series fish finder.
8-Pin Transducer to 4-Pin Sounder (010-11947-00)
This adapter cable has been discontinued by Garmin.
12-Pin Transducer to 4-Pin Sounder (010-12234-05)
This adapter cable connects a 12-pin transducer to dual 4-pin sounders with SideVü and ClearVü.

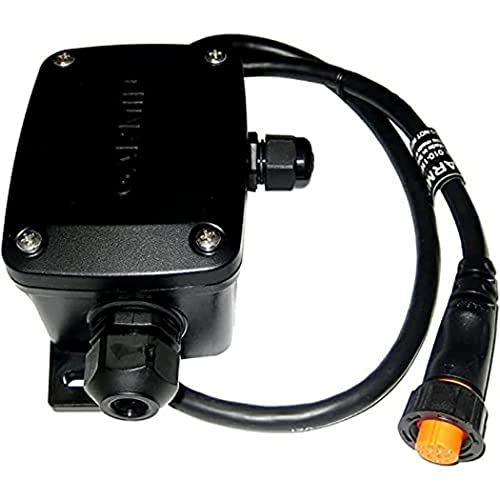

Bare Wire Transducer to 12-Pin Sounder (010-11613-10)
This wire block adapter connects a Garmin 12-pin sounder connector to a compatible bare wire transducer.
8-Pin Transducer to 4-Pin Sounder (010-11947-00)
This adapter cable has been discontinued by Garmin.
